ALL NEW
RAV4

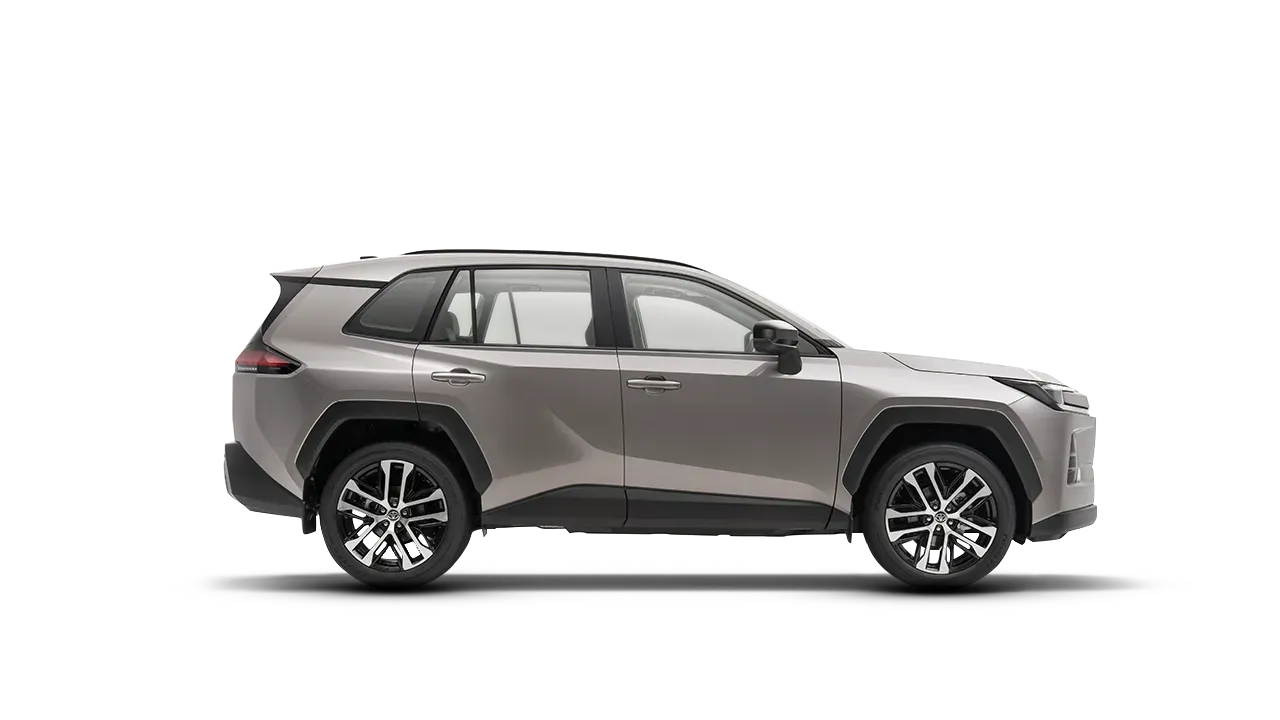

Avant-Garde Bronze Metallic
Dimension and Weight
| Overall Dimensions (mm) | 4600 x 1855 x 1695 |
| Wheelbase (mm) | 2,690 |
| Min. Ground Clearance | 201 |
| Seating Capacity | 5 |
Engine
| Model | A25A-FXS |
| Engine Type | 16-Valve DOHC, 4 Cylinders, In-line type, with VVT-iE and VVT-I, Hybrid |
| Engine Displacement (cc) | 2,487 |
| Maximum Output (ps/rpm) | 186 / 6000 |
| Total System Max Output | 239 |
| Maximum Torque (Nm/Rpm) | 221 / 3600 - 5200 |
| Fuel Type | Gasoline |
| Fuel Capacity (L) | 55 |
Transmission
| Transmission | e-CVT |
Interior
| Seat Material | Leather |
| Driver Seat Type & Adjustment | 8-Way Power with Memory |
| Passenger Seat Type & Adjustment | 8-Way Power |
| Rear #1 Passenger Seat Type & Adjustment | 60:40 Split + Fold Down + 2-Stage Reclining |
| Steering Wheel Material | Leather |
| Sunvisor | D+P: With + Vanity Mirror + Light |
| Cup/Bottle Holder | Cupholder Fr: Front: 2, Rear: 2 / Bottleholder Rr: Front: 2, Rear: 2 |
| Inside Rear View Mirror | Electrochromic Mirror |
| Economy Meter | Hybrid System Indicator |
| Seat Ventilation | Driver and Passenger |
| Seat Heater | Driver and Passenger (Hi-Mid-Lo), Rear (On-Off) |
| Tonneau Cover | Driver and Passenger (Hi-Mid-Lo), Rear (On-Off) |
Exterior
| Headlamps | Projector LED |
| Daytime Running Lights | Dual (Upper & Lower) |
| Front Fog Lamps | LED |
| Mudguards | Front + Rear |
| Roof Rail | With |
| Front Windshield Wiper | Rain-Sensing |
| Rear Windshield Wiper | Intermittent + Washer |
| Rear Combination Lamps | LED |
| Outside Rear View Mirror | Auto-fold, Adjust |
| Rear Spoiler | With |
| Moon Roof | Panoramic |
Function
| Power Window | Auto Up-Down with Jam Protect |
| Power Door Lock | With |
| Keyless Entry | Smart Entry |
| Ignition System | Push Start |
| Airconditioning System | F: Automatic Dual Zone Climate Control with S-Flow |
| Wireless Charger | 2 |
| Accessory Outlet | Front: 1; Deck: 1 |
| Drive Mode Select | Eco, Sport, Normal, Custom, Trail, Snow |
| USB Charger (Type C) | Front (45W): 2, Center: 1, Rear (15W): 2 |
| Audio System Type | 12.9" Display Audio with Wireless Apple Carplay and Wireless Android Auto |
| Audio System Function | Bluetooth, AM/FM, Navigation, USB |
| Audio System Speakers | 9-Speaker JBL Sound System |
| Meter Cluster Multi Info Display | 12.3" TFT |
| Heads-up Display | With |
| Power Steering | Electronic |
| Steering Switches | Audio, Multi-Info Display, Voice, Lane Tracing Assist, Adaptive Cruise Control |
| Steering Wheel Adjust | Tilt and Telescopic |
| Power Back Door | With Kick Sensor |
Chassis
| Front Brake/ Rear Brake | Fr: Ventilated Disc / Rr: Solid Disc |
| Tires | 235/50 R20 |
| Suspension | Fr: MacPherson Strut / Rr: Multi-Link |
| Parking Brake | EPB with Brake Hold |
| Drivetrain | AWD |
| Spare Tires | Temporary Tire (165/90 D18) |
Safety and Security
| Blind Spot Monitor (BSM) | With |
| SRS Airbags | Driver, Passenger, Front Side, Curtain Shield, Driver Knee |
| Anti-Lock Brake System (ABS) | With |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Front Seatbelts | 3 pt. ELR + Pretensioner + Force Limiter: 2 |
| Rear Seatbelts | 3 pt. ELR, Pretensioner and Force Limiter: 2, 3 pt. ELR: 1 |
| Child Restraint System | Rear: 2 |
| Emergency Brake Signal | With |
Toyota Vehicle Security System (TVSS) | Immobilizer |
| Camera | Panoramic View Monitor |
| Clearance and Back Sonar | Front: 6 + Rear: 6 |
| Pre-Collision System (PCS) | With |
| Automatic High Beam (AHB) | With |
| Lane Tracing Assist (LTA) | With |
| Lane Departure Alert (LDA) | With |
Adaptive High Beam System (AHS) | With |
Dynamic Radar Cruise Control (DRCC) | With |
| Downhill Assist Control (DAC) | With |
| Safe Exit Assist (SEA) | With |
| Parking Support Brake | With |
| Intelligent Parking Assist | With |
Dimension and Weight
| Overall Dimensions (mm) | 4620 x 1880 x 1745 |
| Wheelbase (mm) | 2,690 |
| Min. Ground Clearance | 201 |
| Seating Capacity | 5 |
Engine
| Model | A25A-FXS |
| Engine Type | 16-Valve DOHC, 4 Cylinders, In-line type, with VVT-iE and VVT-I, Hybrid |
| Engine Displacement (cc) | 2,487 |
| Maximum Output (ps/rpm) | 186 / 6000 |
| Total System Max Output | 239 |
| Maximum Torque (Nm/Rpm) | 221 / 3600 - 5200 |
| Fuel Type | Gasoline |
| Fuel Capacity (L) | 55 |
Transmission
| Transmission | e-CVT |
Interior
| Seat Material | Synthetic Leather |
| Driver Seat Type & Adjustment | 8-Way Power |
| Passenger Seat Type & Adjustment | 6-Way Manual |
| Rear #1 Passenger Seat Type & Adjustment | 60:40 Split + Fold Down + 2-Stage Reclining |
| Steering Wheel Material | Leather |
| Sunvisor | D+P: With + Vanity Mirror + Light |
| Cup/Bottle Holder | Cupholder Fr: Front: 2, Rear: 2 / Bottleholder Rr: Front: 2, Rear: 2 |
| Inside Rear View Mirror | Day and Night |
| Economy Meter | Hybrid System Indicator |
| Seat Ventilation | Driver and Passenger |
| Seat Heater | Driver and Passenger (Hi-Mid-Lo), Rear (On-Off) |
| Tonneau Cover | With |
Exterior
| Headlamps | Projector LED |
| Daytime Running Lights | Single (Lower) |
| Front Fog Lamps | LED |
| Mudguards | Front + Rear |
| Roof Rail | With (Bridge Rails) |
| Front Windshield Wiper | Rain-Sensing |
| Rear Windshield Wiper | Intermittent + Washer |
| Rear Combination Lamps | LED |
| Outside Rear View Mirror | Auto-fold, Adjust |
| Rear Spoiler | With |
| Overfenders | With |
| Moon Roof | Tilt & Slide |
Function
| Power Window | Auto Up-Down with Jam Protect |
| Power Door Lock | With |
| Keyless Entry | Smart Entry |
| Ignition System | Push Start |
| Airconditioning System | F: Automatic Dual Zone Climate Control with S-Flow |
| Wireless Charger | 1 |
| Accessory Outlet | Front: 1; Deck: 1 |
| Drive Mode Select | Eco, Sport, Normal, Custom, Trail, Snow |
| USB Charger (Type C) | Front (45W): 2, Center: 1, Rear (15W): 2 |
| Audio System Type | 12.9" Display Audio with Wireless Apple Carplay and Wireless Android Auto |
| Audio System Function | Bluetooth, AM/FM, Navigation, USB |
| Audio System Speakers | 9-Speaker JBL Sound System |
| Meter Cluster Multi Info Display | 12.3" TFT |
| Power Steering | Electronic |
| Steering Switches | Audio, Multi-Info Display, Voice, Lane Tracing Assist, Adaptive Cruise Control |
| Steering Wheel Adjust | Tilt and Telescopic |
| Power Back Door | With Kick Sensor |
Chassis
| Front Brake/ Rear Brake | Fr: Ventilated Disc / Rr: Solid Disc |
| Tires | 235/60 R18 |
| Suspension | Fr: MacPherson Strut / Rr: Multi-Link |
| Parking Brake | EPB with Brake Hold |
| Drivetrain | AWD |
| Spare Tires | Temporary Tire (165/80 D17) |
Safety and Security
| Blind Spot Monitor (BSM) | With |
| SRS Airbags | Driver, Passenger, Front Side, Curtain Shield, Driver Knee |
| Anti-Lock Brake System (ABS) | With |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Front Seatbelts | 3 pt. ELR + Pretensioner + Force Limiter: 2 |
| Rear Seatbelts | 3 pt. ELR, Pretensioner and Force Limiter: 2, 3 pt. ELR: 1 |
| Child Restraint System | ISOFIX & Tether Anchor Rear: 2 |
| Emergency Brake Signal | With |
Toyota Vehicle Security System (TVSS) | Immobilizer |
| Camera | Panoramic View Monitor |
| Clearance and Back Sonar | Front: 6 + Rear: 6 |
| Pre-Collision System (PCS) | With |
| Automatic High Beam (AHB) | With |
| Lane Tracing Assist (LTA) | With |
| Lane Departure Alert (LDA) | With |
Dynamic Radar Cruise Control (DRCC) | With |
| Downhill Assist Control (DAC) | With |
| Safe Exit Assist (SEA) | With |
| Parking Support Brake | With |

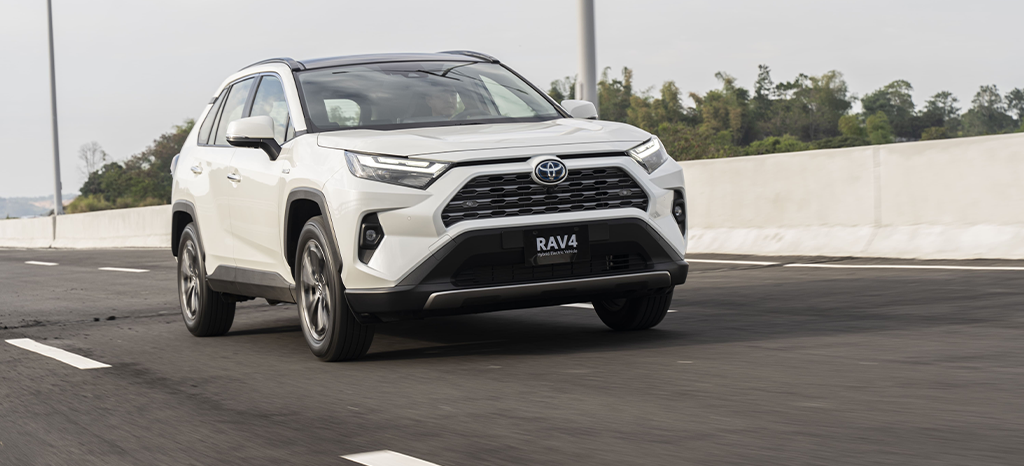

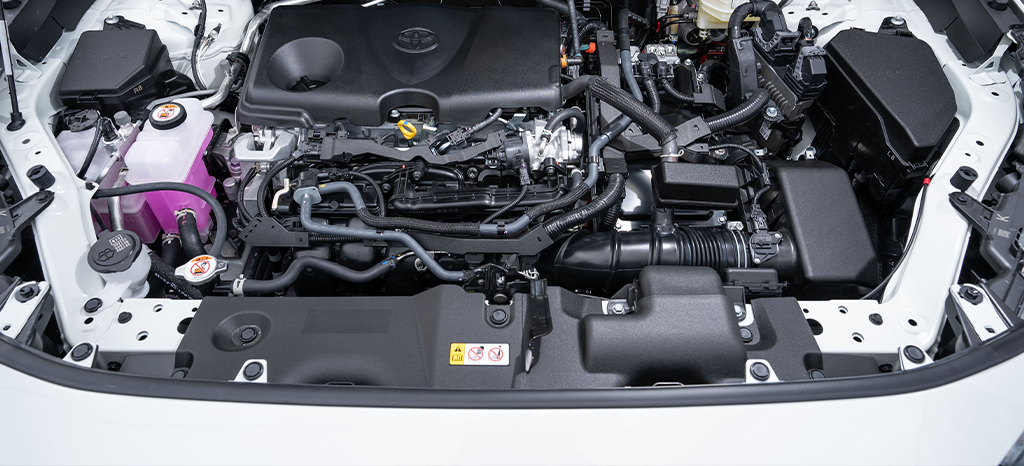

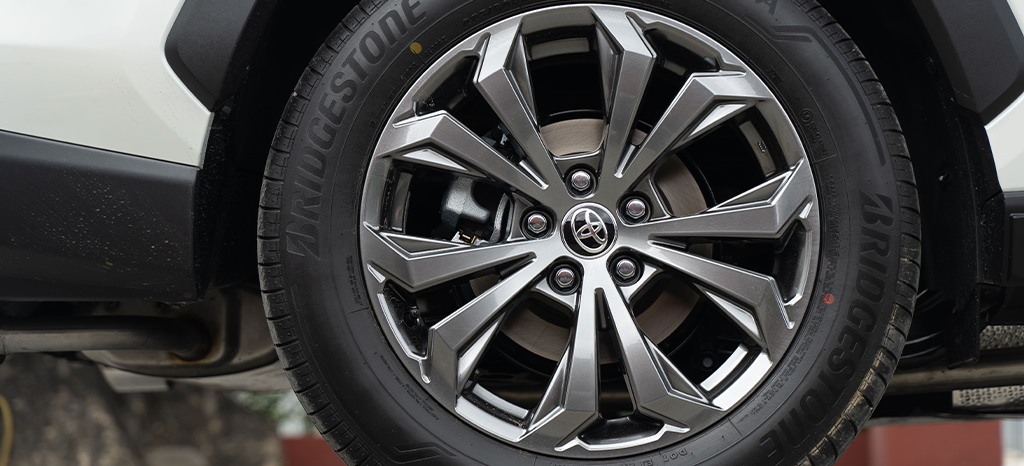

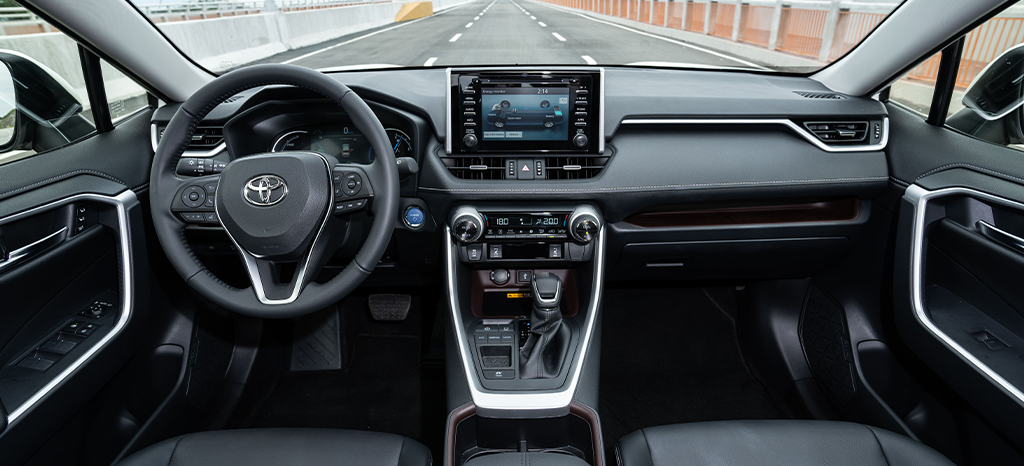

GALLERY
