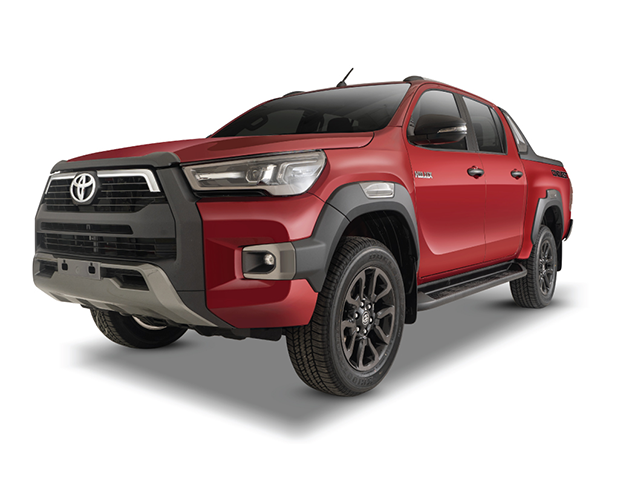

ALL NEW
Hilux

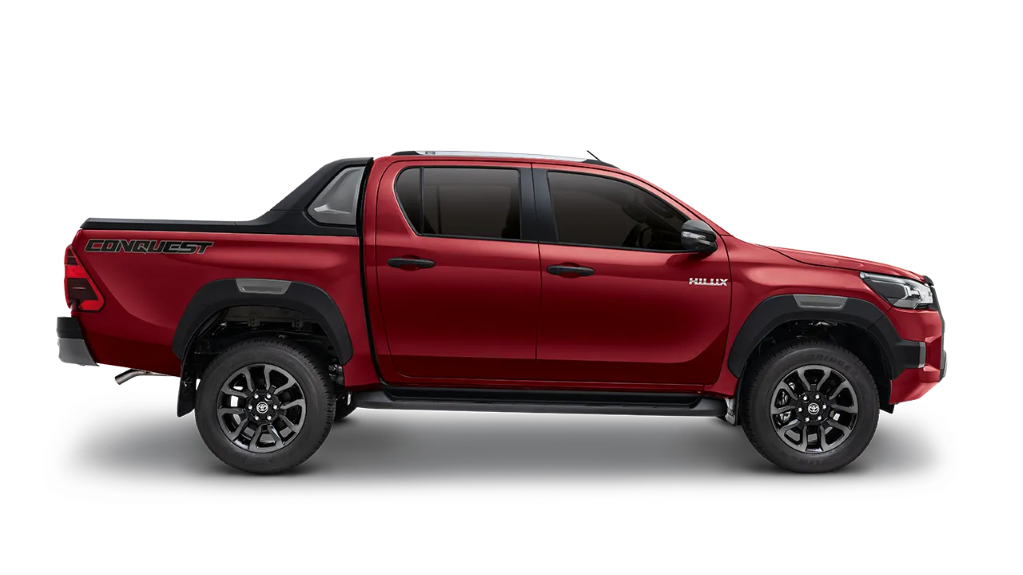

Emotional Red
2.8 CONQUEST 4x4 A/T
2.8 CONQUEST 4x4 M/T
2.4 CONQUEST 4x2 A/T
2.4 G 4x2 A/T
2.4 G 4x2 M/T
2.4 E 4x2 A/T
2.4 E 4x2 M/T
Dimension and Weight
| Overall Dimensions (mm) | 5,325 x 2,020 x 1,845 |

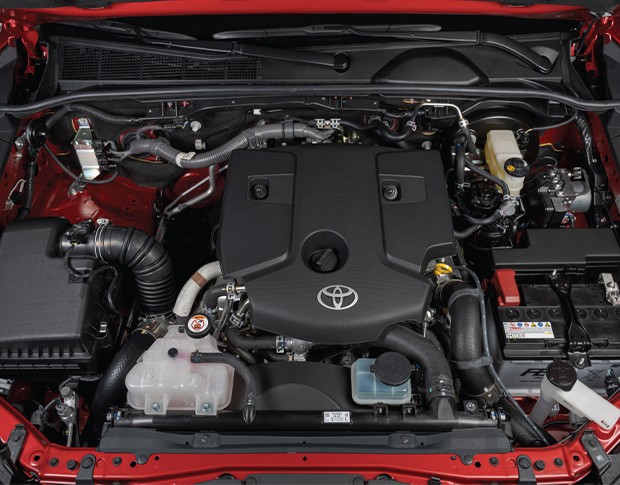

Engine
| Engine Type | 2.8L Diesel, 4-Cylinder, 16-Valve DOHC Variable Nozzle Turbo with Air-cooled Intercooler |
| Engine Displacement (cc) | 2755 |
| Maximum Output (ps/rpm) | 204 / 3000 ~ 3,400 |
| Maximum Torque (Nm/Rpm) | 500 / 1,600 ~ 2,800 |
Transmission
| Power Transmission | 6-Speed A/T |
Interior
| Seat Material | Leather |
| Driver Seat Type & Adjustment | 8-Way Power Adjust |
| Passenger Seat Type & Adjustment | 4-Way Manual Adjust |
| Rear #1 Passenger Seat Type & Adjustment | 60/40 Separate |
| Instrument Panel Multi Info Display | 4.2" TFT |
| Rear View Mirror | Auto-Dimming |
Exterior
| Headlamps | LED with Auto-Leveling |
| Daytime Running Lights | LED |
Function
| Keyless Entry | Smart Entry |
| Ignition System | Push Start System |
| Airconditioning System | Dual Zone Automatic Climate Control |
| Hood-Lift Assist | With |

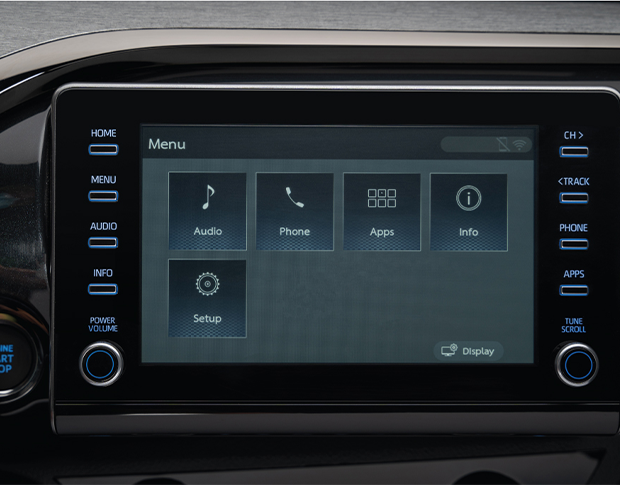

| Audio System Type | 9" Display Audio |
| Audio System Function | AM/FM/Bluetooth/USB/Apple Carplay (Wireless) /Android Auto (Wireless) |
Chassis
| Front Brake/ Rear Brake | Front: Ventilated Discs/Rear: Disc Type |
| Tires | 265 |
| Wheels | 60 R18 Alloy |
| Suspension | Front: Double Wishbone, Rear: Leaf Spring Rigid Axle |
Safety and Security
| Toyota Safety Sense (TSS) | Pre-Collision System (PCS), Lane Departure Alert (LDA), and Dynamic Radar Cruise Control (DRCC) |
| Blind Spot Monitor (BSM) | With |
| Rear Cross Traffic Alert (RCTA) | With |
| SRS Airbags | Driver +Front Passenger + Side + Curtain Shield + Knee (Dr) |
| Anti-Lock Brake System (ABS) | With + Brake Assist + EBD |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Seatbelts Front | 3 pt. ELR + Pretensioner + Force Limiter |
| Seatbelts Rear | 3 pt. ELR x3 |
| Camera | Panoramic View Monitor |
| Clearance and Back Sonar | Front: 2 + Rear: 4 |
Others
| Speakers | 6 |
| Vehicle Stability | With |
| Hill Start Assist | With |
Dimension and Weight
| Overall Dimensions (mm) | 5,325 x 2,020 x 1,845 |
Engine
| Engine Type | 2.8L Diesel, 4-Cylinder, 16-Valve DOHC Variable Nozzle Turbo with Air-cooled Intercooler |
| Engine Displacement (cc) | 2755 |
| Maximum Output (ps/rpm) | 204 / 3000 ~ 3,400 |
| Maximum Torque (Nm/Rpm) | 420 / 1600 ~ 3400 |
Transmission
| Transmission | 6-Speed MT w/ iMT |
Interior
| Seat Material | Leather |
| Driver Seat Type & Adjustment | 8-Way Power Adjust |
| Passenger Seat Type & Adjustment | 4-Way Manual Adjust |
| Rear #1 Passenger Seat Type & Adjustment | 60/40 Separate |
| Steering Wheel Material | Leather |
| Instrument Panel Multi Info Display | 4.2" TFT |
| Rear View Mirror | Auto-Dimming |
Exterior
| Headlamps | Bi-Beam LED |
| Daytime Running Lights | LED |
| Front Foglamps | LED |
Function
| Keyless Entry | Smart Entry |
| Ignition System | Push Start System |
| Airconditioning System | Dual Zone Automatic Climate Control |
| Audio System Type | 9" Display Audio |
| Audio System Function | AM/FM/Bluetooth/USB/Apple Carplay (Wireless) /Android Auto (Wireless) |
Chassis
| Front Brake/ Rear Brake | Front: Ventilated Discs / Rear: Disc Type |
| Tires | 265 |
| Wheels | 60 R18 Alloy |
| Suspension | Front: Double Wishbone / Rear: Leaf Spring Rigid Axle |
Safety and Security
| Toyota Safety Sense (TSS) | Pre-Collision System (PCS), Lane Departure Alert (LDA), Dynamic Radar Cruise Control (DRCC) |
| Blind Spot Monitor (BSM) | With |
| Rear Cross Traffic Alert (RCTA) | With |
| SRS Airbags | Driver +Front Passenger + Knee (Dr) |
| Anti-Lock Brake System (ABS) | With + Brake Assist + EBD |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Camera | Panoramic View Monitor |
| Clearance and Back Sonar | Front: 2 + Rear: 4 |
Others
| Speakers | 6 |
Dimension and Weight
| Overall Dimensions (mm) | 5,325 x 1,900 x 1,845 |
Engine
| Engine Type | 2.4L Diesel, 4-Cylinder, 16-Valve DOHC Variable Nozzle Turbo with Air-cooled Intercooler |
| Engine Displacement (cc) | 2393 |
| Maximum Output (ps/rpm) | 150 / 3,400 |
| Maximum Torque (Nm/Rpm) | 400 / 1,600 ~ 2,000 |
Transmission
| Transmission | 6-Speed A/T |
Interior
| Driver Seat Type & Adjustment | 8-Way Power Adjust |
| Passenger Seat Type & Adjustment | 4-Way Manual Adjust |
| Rear #1 Passenger Seat Type & Adjustment | 60/40 Separate |
| Instrument Panel Multi Info Display | 4.2" TFT |
| Rear View Mirror | Auto-Dimming |
Exterior
| Headlamps | LED with Auto-Leveling |
| Daytime Running Lights | LED |
Function
| Keyless Entry | Smart Entry |
| Ignition System | Push Start System |
| Airconditioning System | Dual Zone Automatic Climate Control |
| Hood-Lift Assist | With |
| Audio System Type | 9" Display Audio |
| Audio System Function | AM/FM/Bluetooth/USB/Apple Carplay (Wireless) /Android Auto (Wireless) |
Chassis
| Front Brake/ Rear Brake | Front: Ventilated Discs / Rear: Drum Type |
| Tires | 265 |
| Wheels | 60 R18 Alloy |
| Suspension | Front: Double Wishbone / Rear: Leaf Spring Rigid Axle |
Safety and Security
| Toyota Safety Sense (TSS) | Pre-Collision System (PCS), Lane Departure Alert (LDA), Dynamic Radar Cruise Control (DRCC) |
| Blind Spot Monitor (BSM) | With |
| Rear Cross Traffic Alert (RCTA) | With |
| SRS Airbags | Driver + Front Passenger + Knee (Dr) |
| Anti-Lock Brake System (ABS) | With + Brake Assist + EBD |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Camera | Panoramic View Monitor |
| Clearance and Back Sonar | Front: 2 + Rear: 4 |
Others
| Antenna | Pole Type |
| Speakers | 6 |
Dimension and Weight
| Overall Dimensions (mm) | 5,365 x 1,855 x 1,815 |
Engine
| Engine Type | 2.4L Diesel, 4-Cylinder, 16-Valve DOHC Variable Nozzle Turbo with Air-cooled Intercooler |
| Engine Displacement (cc) | 2393 |
| Maximum Output (ps/rpm) | 150 / 3,400 |
| Maximum Torque (Nm/Rpm) | 400 / 1,600 ~ 2,000 |
Transmission
| Transmission | 6-Speed A/T |
Interior
| Seat Material | Fabric |
| Driver Seat Type & Adjustment | 6-Way Manual Adjust |
| Passenger Seat Type & Adjustment | 60/40 Separate |
| Instrument Panel Multi Info Display | 4.2" TFT |
| Rear View Mirror | Day & Night |
Exterior
| Headlamps | LED with Auto-Leveling |
Function
| Keyless Entry | Smart Entry |
| Ignition System | Push Start System |
| Airconditioning System | Dual Zone Automatic Climate Control |
| Audio System Type | 8" Display Audio |
| Audio System Function | AM/FM/Bluetooth/USB/Apple Carplay/Android Auto |
Chassis
| Front Brake/ Rear Brake | Front: Ventilated Discs / Rear: Drum Type |
| Tires | 265 |
| Wheels | 60 R18 Alloy |
| Suspension | Front: Double Wishbone / Rear: Leaf Spring Rigid Axle |
Safety and Security
| SRS Airbags | Driver + Front Passenger + Knee (Dr) |
| Anti-Lock Brake System (ABS) | With + Brake Assist + EBD |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Camera | Reverse Camera |
| Clearance and Back Sonar | Rear: 2 |
Others
| Antenna | Pole Type |
| Speakers | 6 |
Dimension and Weight
| Overall Dimensions (mm) | 5,365 x 1,855 x 1,815 |
Engine
| Engine Type | 2.4L Diesel, 4-Cylinder, 16-Valve DOHC Variable Nozzle Turbo with Air-cooled Intercooler |
| Engine Displacement (cc) | 2393 |
| Maximum Output (ps/rpm) | 150/ 3,400 |
| Maximum Torque (Nm/Rpm) | 400 / 1,600 ~ 2,000 |
Transmission
| Transmission | 6-Speed M/T |
Interior
| Seat Material | Fabric |
| Driver Seat Type & Adjustment | 6-Way Manual Adjust |
| Passenger Seat Type & Adjustment | 4-Way Manual Adjust |
| Rear #1 Passenger Seat Type & Adjustment | 60/40 Separate |
| Steering Wheel Material | Leather |
| Instrument Panel Multi Info Display | 4.2" TFT |
| Rear View Mirror | Day & Night |
Exterior
| Headlamps | LED with Auto-Leveling |
Function
| Keyless Entry | Smart Entry |
| Ignition System | Push Start System |
| Airconditioning System | Dual Zone Automatic Climate Control |
| Audio System Type | 8" Display Audio |
| Audio System Function | AM/FM/Bluetooth/USB/Apple Carplay/Android Auto |
Chassis
| Front Brake/ Rear Brake | Front: Ventilated Discs / Rear: Drum Type |
| Tires | 265 |
| Wheels | 60 R18 Alloy |
| Suspension | Front: Double Wishbone / Rear: Leaf Spring Rigid Axle |
Safety and Security
| SRS Airbags | Driver + Front Passenger + Knee (Dr) |
| Anti-Lock Brake System (ABS) | With + Brake Assist + EBD |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Camera | Reverse Camera |
| Clearance and Back Sonar | Rear: 2 |
Others
| Antenna | Pole Type |
| Speakers | 6 |
Dimension and Weight
| Overall Dimensions (mm) | 5,365 x 1,855 x 1,815 |
Engine
| Engine Type | 2.4L Diesel, 4-Cylinder, 16-Valve DOHC Variable Nozzle Turbo with Air-cooled Intercooler |
| Engine Displacement (cc) | 2393 |
| Maximum Output (ps/rpm) | 150/ 3,400 |
| Maximum Torque (Nm/Rpm) | 400 / 1,600 ~ 2,000 |
Transmission
| Transmission | 6-Speed A/T |
Interior
| Seat Material | Fabric |
| Driver Seat Type & Adjustment | 6-Way Manual Adjust |
| Passenger Seat Type & Adjustment | 4-Way Manual Adjust |
| Rear #1 Passenger Seat Type & Adjustment | 60/40 Separate |
| Instrument Panel Multi Info Display | 4.2" TFT |
| Rear View Mirror | Day & Night |
Exterior
| Headlamps | Multi-Reflector Halogen |
Function
| Keyless Entry | With |
| Ignition System | Rotary Type |
| Airconditioning System | Dual Zone Automatic Climate Control |
| Audio System Type | 8" Display Audio |
| Audio System Function | AM/FM/Bluetooth/USB/Apple Carplay/Android Auto |
Chassis
| Front Brake/ Rear Brake | Ventilated Discs/ Drum Type |
| Tires | 265 |
| Wheels | 60 R17 Alloy |
| Suspension | Front: Double Wishbone / Rear : Leaf Spring Rigid Axle |
Safety and Security
| SRS Airbags | Driver + Front Passenger + Knee (Dr) |
| Anti-Lock Brake System (ABS) | With + Brake Assist + EBD |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Camera | Reverse Camera |
Others
| Antenna | Pole Type |
| Speakers | 6 |
Dimension and Weight
| Overall Dimensions (mm) | 5,325 x 1,855 x 1,815 |
Engine
| Engine Type | 2.4L Diesel, 4-Cylinder, 16-Valve DOHC Variable Nozzle Turbo with Air-cooled Intercooler |
| Engine Displacement (cc) | 2393 |
| Maximum Output (ps/rpm) | 150/ 3,400 |
| Maximum Torque (Nm/Rpm) | 400 / 1,600 ~ 2,000 |
Transmission
| Transmission | 6-Speed M/T |
Interior
| Seat Material | Fabric |
| Driver Seat Type & Adjustment | 6-Way Manual Adjust |
| Passenger Seat Type & Adjustment | 4-Way Manual Adjust |
| Rear #1 Passenger Seat Type & Adjustment | 60/40 Separate |
| Instrument Panel Multi Info Display | 4.2" TFT |
| Rear View Mirror | Day & Night |
Exterior
| Headlamps | Multi-Reflector Halogen |
Function
| Keyless Entry | With |
| Ignition System | Rotary Type |
| Airconditioning System | Dual Zone Automatic Climate Control |
| Audio System Type | 8" Display Audio |
| Audio System Function | AM/FM/Bluetooth/USB/Apple Carplay/Android Auto |
Chassis
| Front Brake/ Rear Brake | Front: Ventilated Discs / Rear: Drum Type |
| Tires | 265 |
| Wheels | 65 R17 Alloy |
| Suspension | Front: Double Wishbone / Rear: Leaf Spring Rigid Axle |
Safety and Security
| SRS Airbags | Driver + Front Passenger + Knee (Dr) |
| Anti-Lock Brake System (ABS) | With + Brake Assist + EBD |
| Vehicle Stability Control (VSC) | With |
| Hill-Start Assist Control (HAC) | With |
| Camera | Reverse Camera |
Others
| Antenna | Pole Type |
| Speakers | 6 |

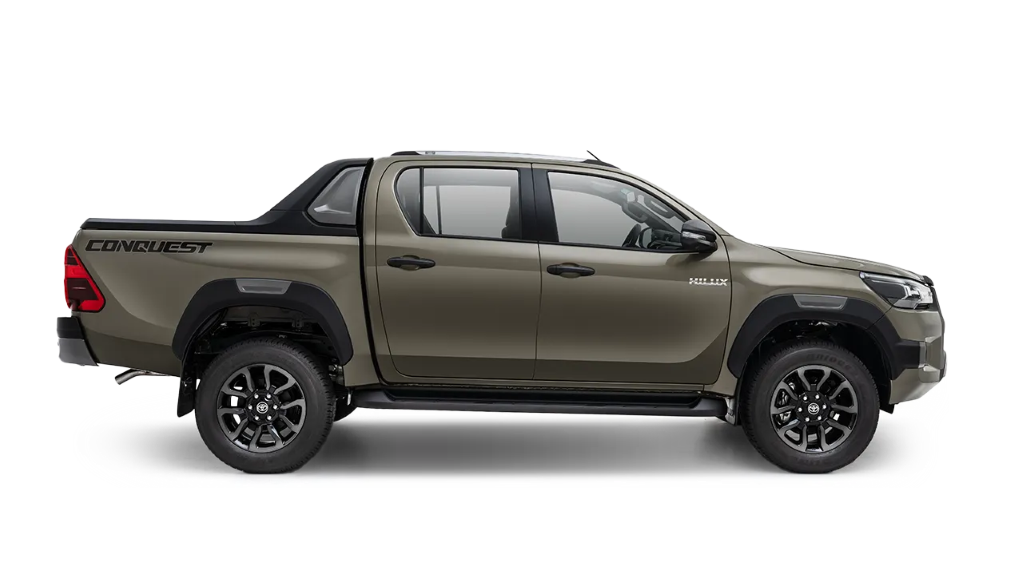

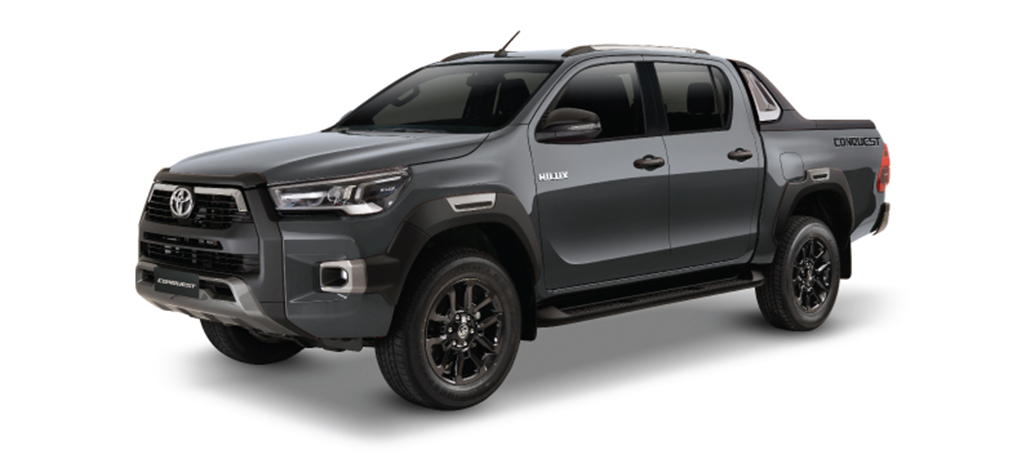

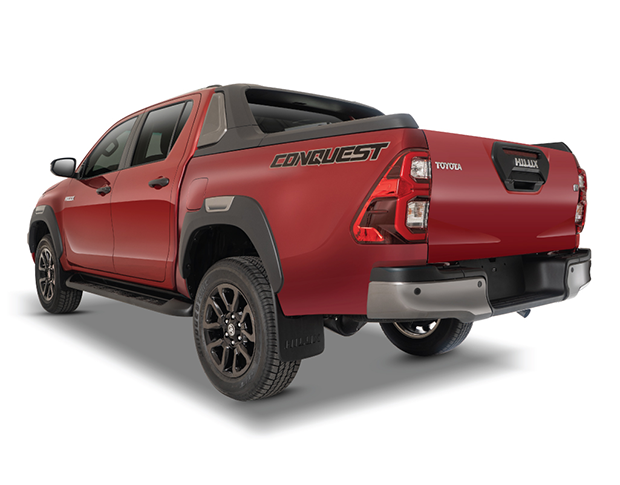

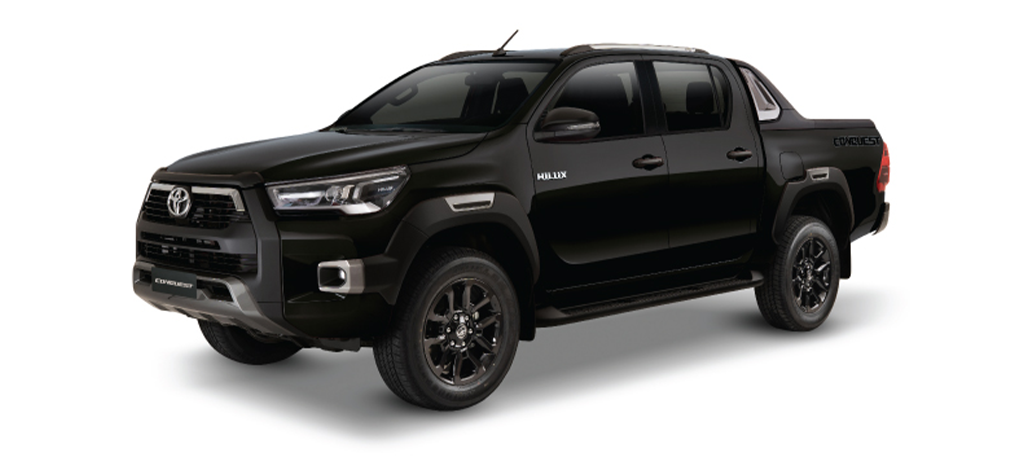

GALLERY
